X3.S

$344.75

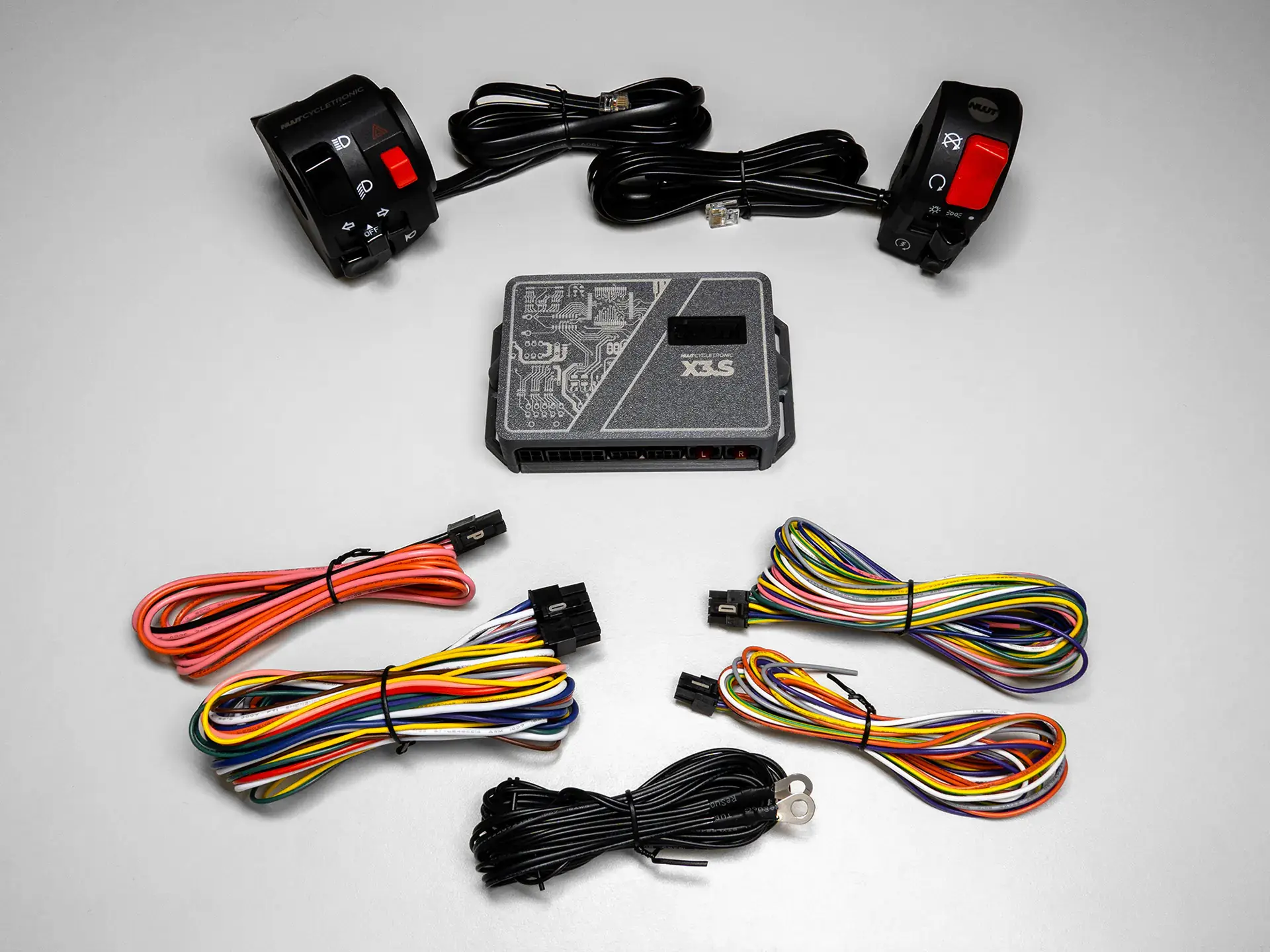

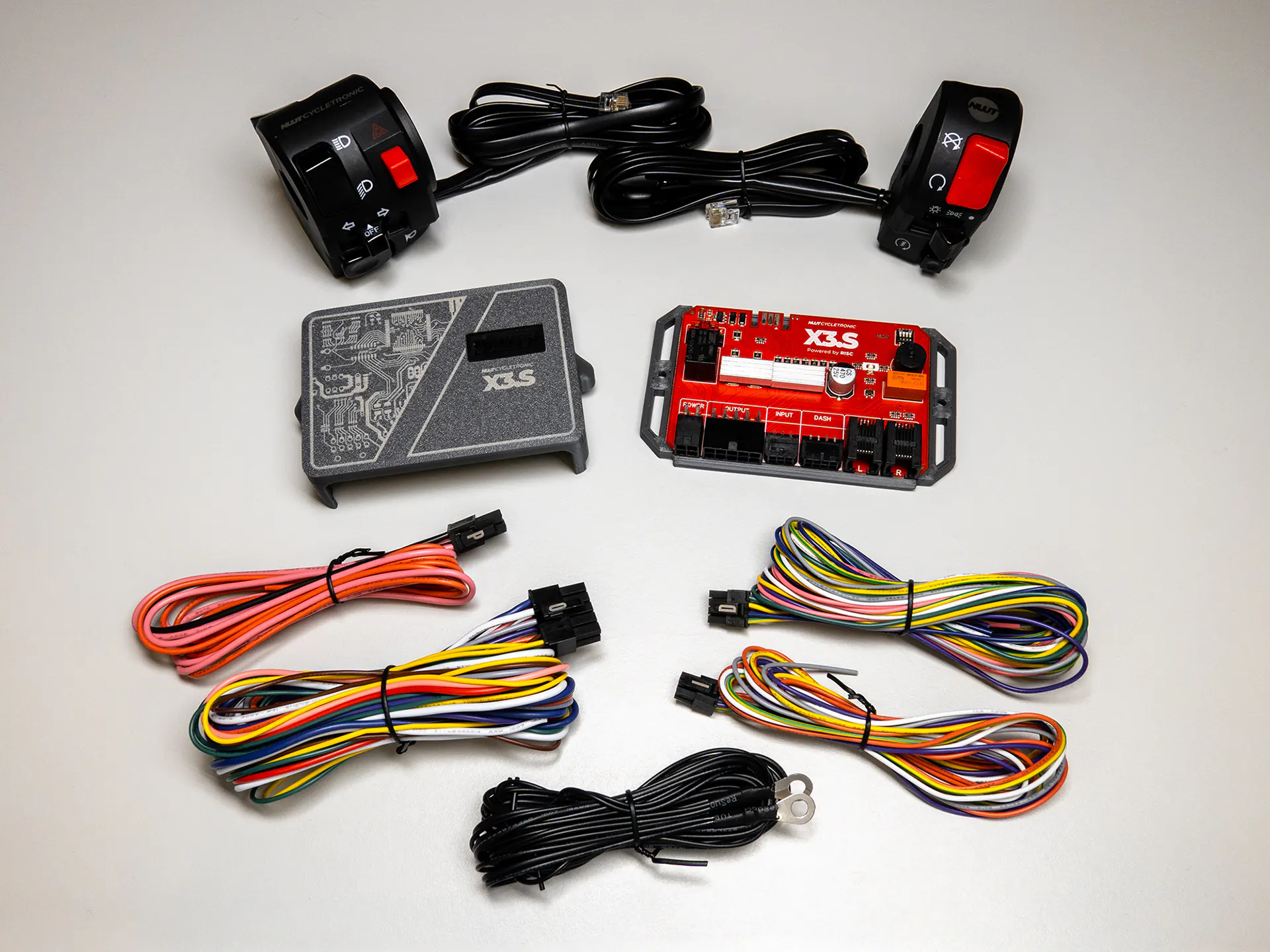

Comes with Standard/factory style handlebar switch controls and harness.

Electricals should be one of the final steps in your bike build—after the mechanicals are complete and just before final tuning.

The X3 Control Systems offer three fully integrated Control Hubs, each with a complete wiring harness designed for a ground-up build. The only difference? Your choice of handlebar switch set.

Go to our Downloads section for PDF Install Guides and common install setups.

SKU: X3.S
Category:
Tags: , , ,

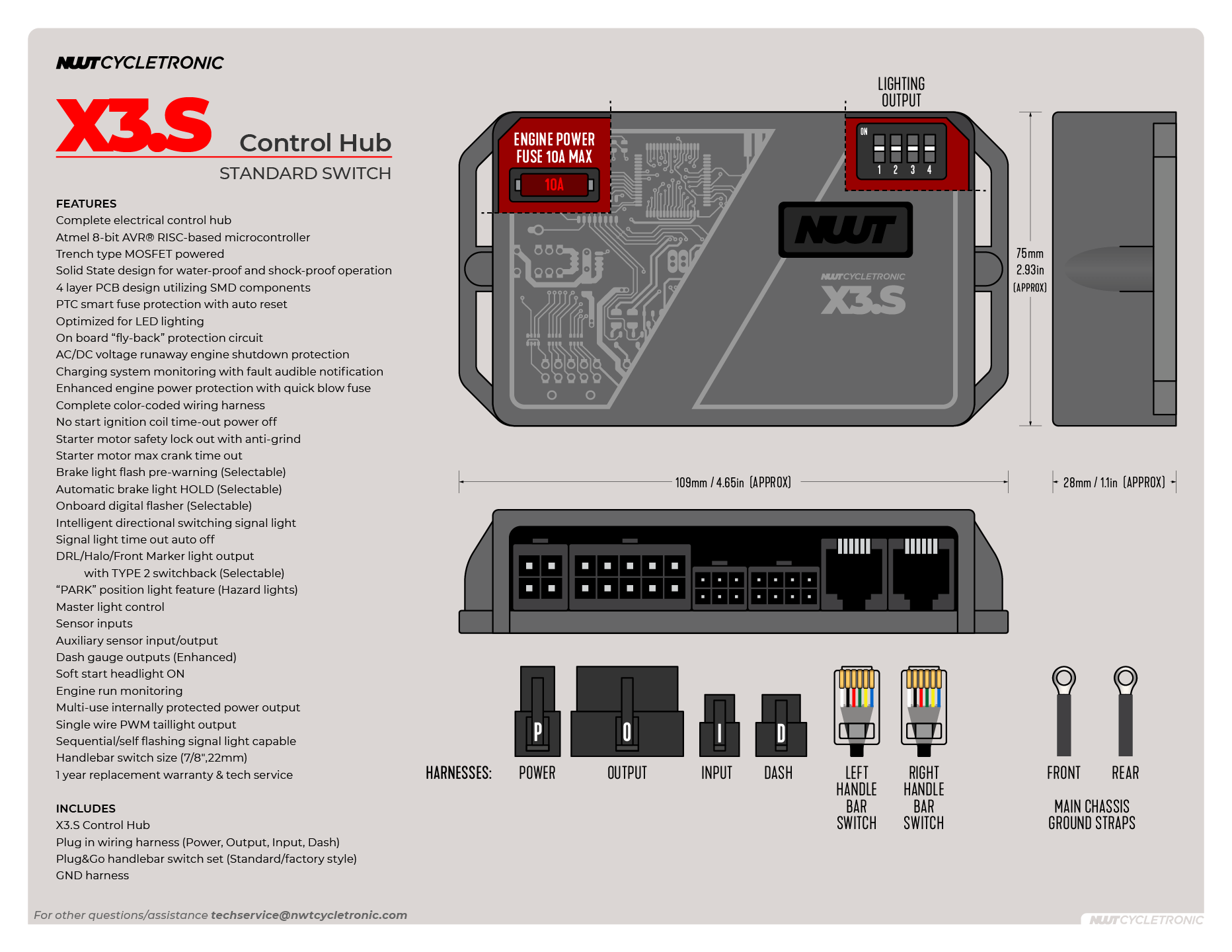

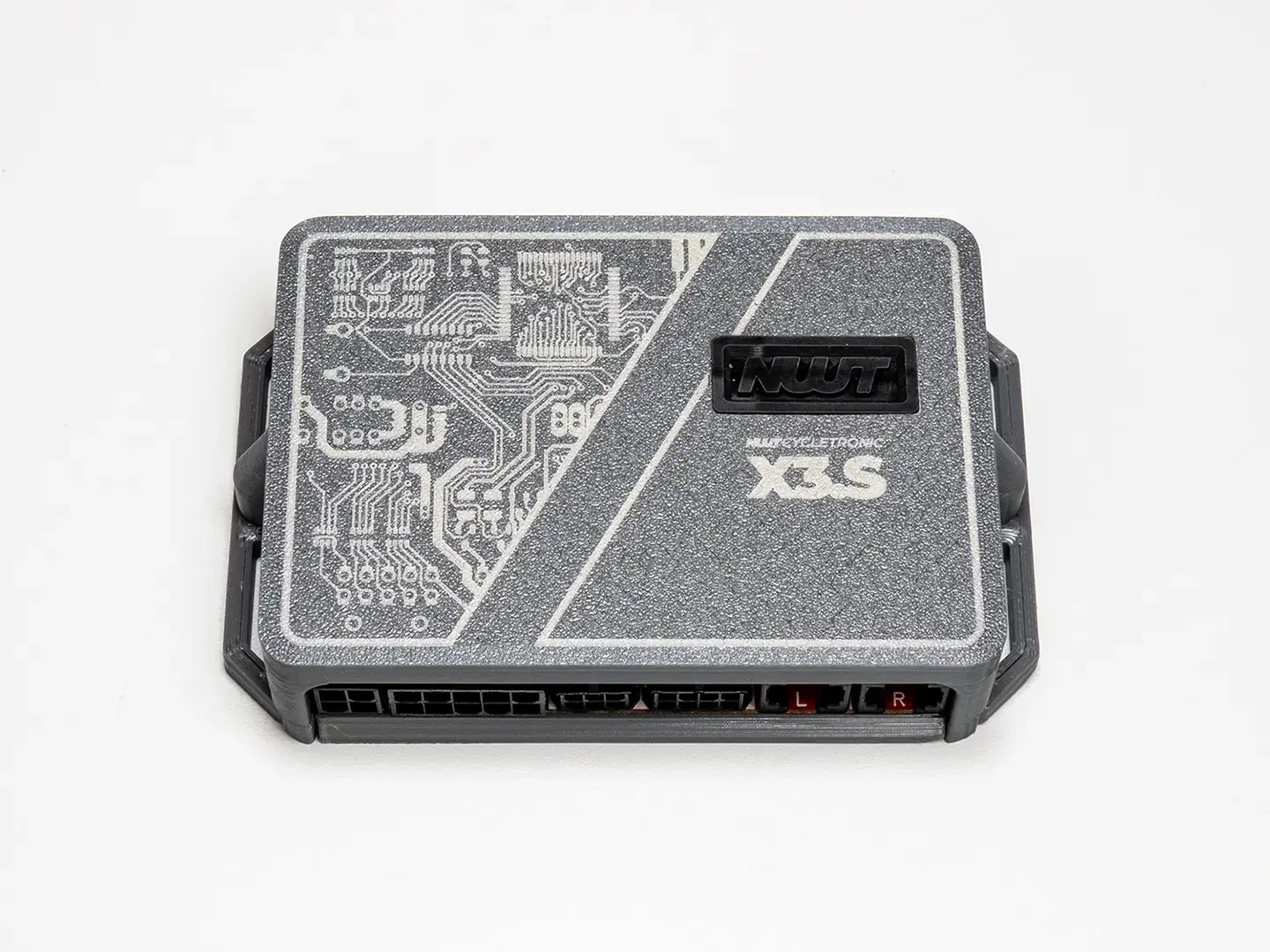

X3.S CONTROL SYSTEM

  • Complete electrical control hub
  • Atmel 8-bit AVR® RISC-based microcontroller
  • Trench type MOSFET powered
  • Solid State design for water-proof and shock-proof operation

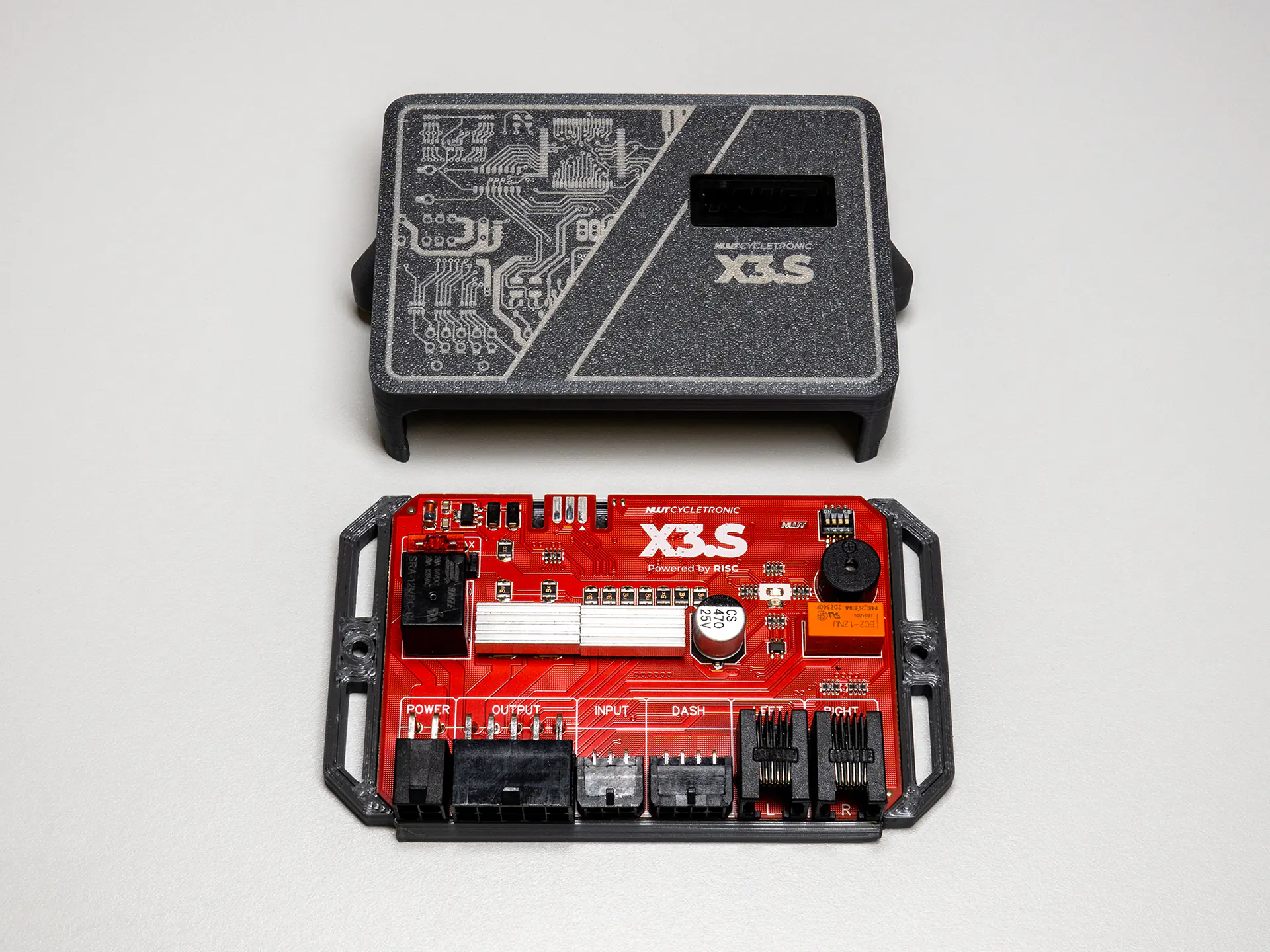

  • 4 layer PCB design utilizing SMD components
  • PTC smart fuse protection with auto reset
  • Optimized for LED lighting
  • On board “fly-back” protection circuit
  • AC/DC voltage runaway engine shutdown protection
  • Charging system monitoring with fault audible notification
  • Enhanced engine power protection with quick blow fuse

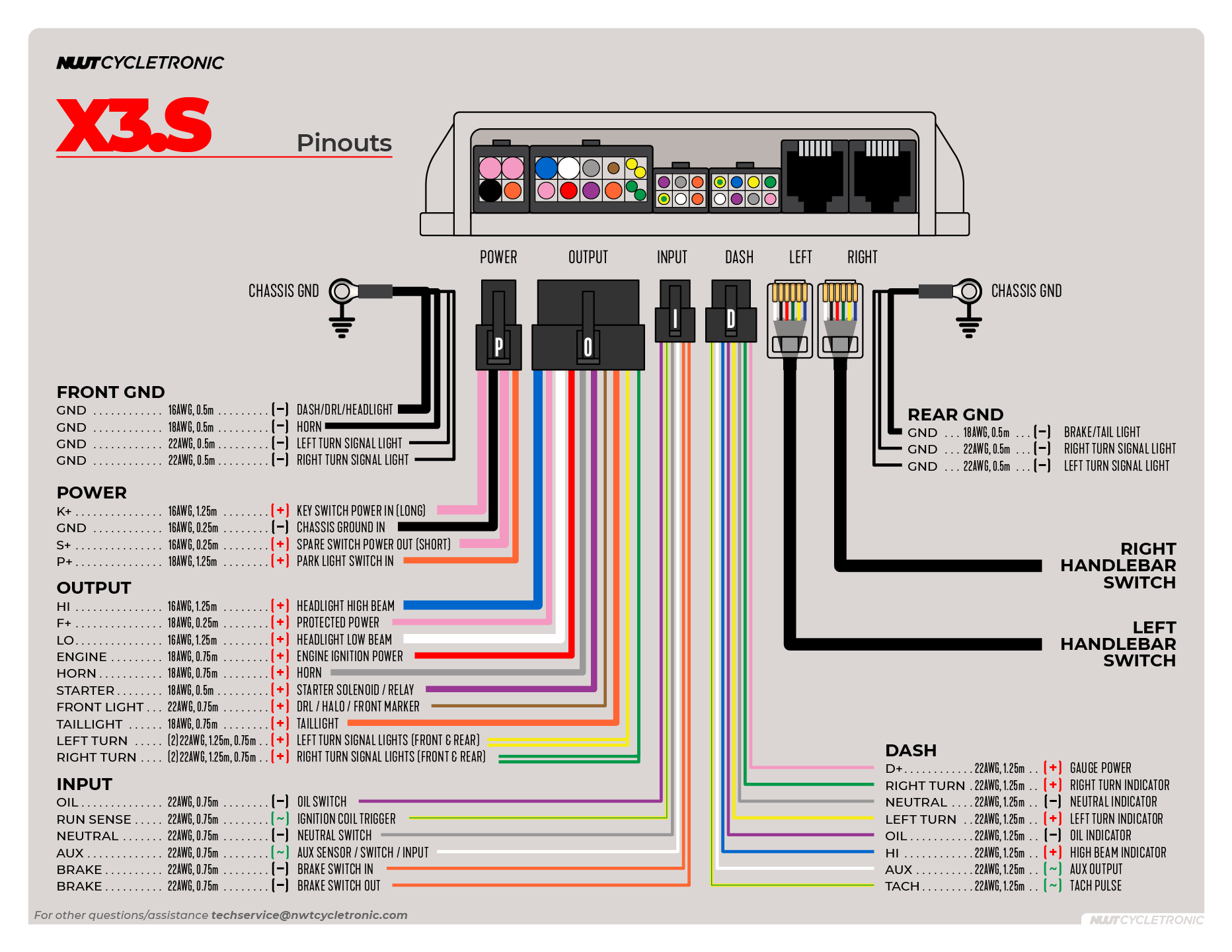

  • Complete color-coded wiring harness
  • No start ignition coil time-out power off
  • Starter motor safety lock out with anti-grind
  • Starter motor max crank time out
  • Brake light flash pre-warning (Selectable)
  • Automatic brake light HOLD (Selectable)
  • Onboard digital flasher (Selectable)
  • Intelligent directional switching signal light
  • Signal light time out auto off
  • DRL/Halo/Front Marker light output with TYPE 2 switchback (Selectable)
  • “PARK” position light feature (Hazard lights)
  • Master light control
  • Sensor inputs
  • Auxiliary sensor input/output
  • Dash gauge outputs (Enhanced)
  • Soft start headlight ON
  • Engine run monitoring
  • Multi-use internally protected power output
  • Single wire PWM taillight output
  • Sequential/self flashing signal light capable
  • Plug&Go handlebar switch set (Standard/factory style)
  • Handlebar switch size 7/8″(22mm)
  • 1 year replacement warranty & tech service

Go to our Downloads section for PDF Install Guides and common install setups.
